Description

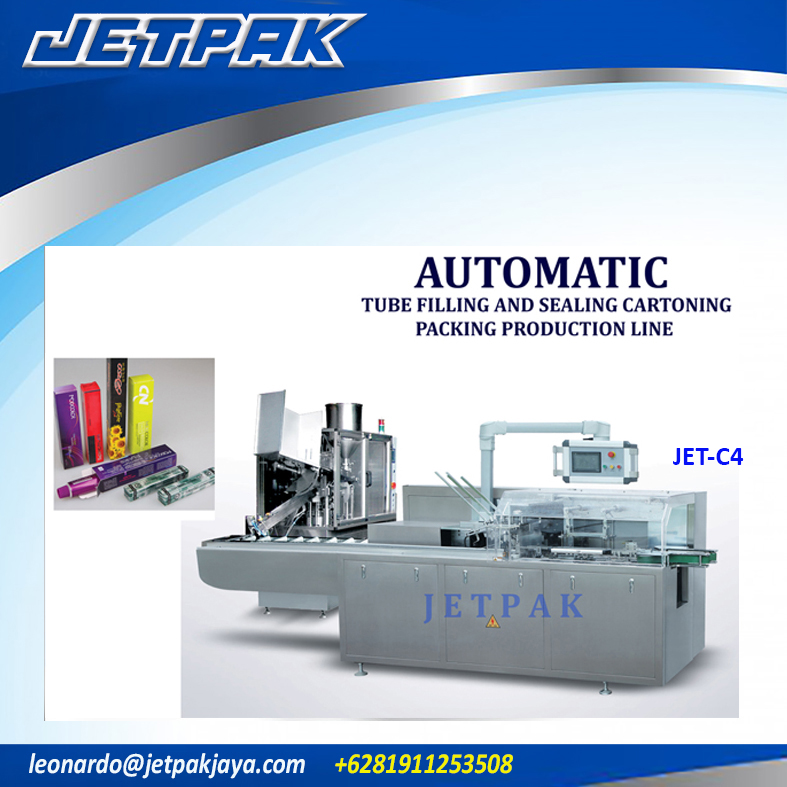

Cartoning Machine for Packing Tube into Carton Box. With your carton box size, we can show you the most suitable machine  Specification   Model: JET-C4   Technical specifications

• Speed:30-80box/min
• Box Thickness range: 250-350g/m2 (according to its size to confirm)
• Box Size Range:Length:70-220mm, Width:14-90mm, Height:14-65mm (can do custom designed)

  Compressed air

• Working pressure:≧0.6mpa
• Air consumption: 20m3/h
• Power supply:380V 50Hz
• Motor Power:1.5KW
• Machine dimension (L×w×H):3800×1100×1900mm
• Machine weight: Appro 1500KGS

Standard features

• Touch Screen HMI controls
• PLC programme
• Japan Omron electric parts (inverter, PLC,touch screen)
• Germany sick photocell
• Vacuum assisted pre-break
• various size are avaliable in machine within machine size range
• without product, carton will be not sucked down
• Auto display trouble, alarm and count finished product
• Overload protection

  Optional features

• auto conveyor(connect our machine with your present machine to be whole automatic line)
• hot melt glue (can be american nordson, dynatec, spain meler, switzerland robatech)
• other brand like simens (inverter, PLC, touch screen)
• Print batch number or date on carton box
