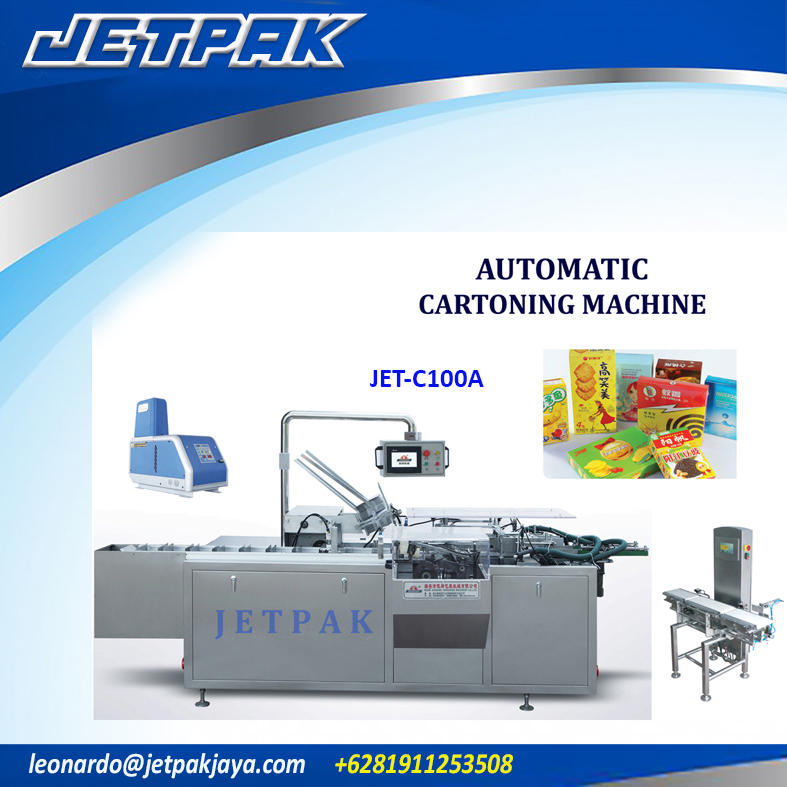

Automatic Cartoning Machine (JET-C100A)


Model: JET-C100A

Technical specifications

  • Speed:30-100box/min
  • Box Thickness range: 250-350g/m2 (according to its size to confirm)
  • Box SizeRange :Length:70-240mm, Width:20-120mm, Height:20-90mm (can do custom designed)


Compressed air

  • Working pressure:≧0.6mpa
  • Air consumption: 20m3/h
  • Power supply:380V50Hz
  • Motor Power:1.5KW
  • Machine dimension (L×w×H):3100×1100×1900mm
  • Machine weight: Appro 1500KGS

Standard features

  • Touch Screen HMI controls
  • PLC programme
  • Japan Omron electric parts (inverter, PLC,touchscreen)
  • Germany sick photocell
  • Multi feeder
  • Vacuum assisted pre-break
  • varioussize are avaliable in machine within machine size range
  • withoutproduct, carton will be not sucked down
  • Auto display trouble, alarm and count finished product
  • Overload protection


Optional features

  • More feeder for product
  • hotmelt glue (can be american nordson, dynatec, spain meler, switzerland robatech)
  • other brand like simens (inverter, PLC, touch screen)
  • Print batch number or date on carton box
