Description

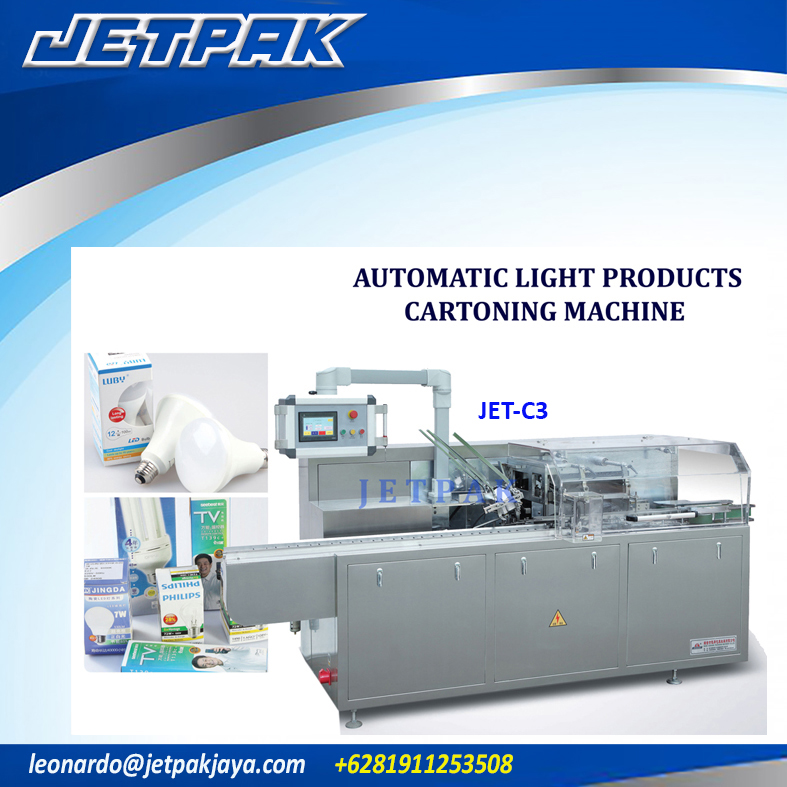

JET-C3 bulb lamps light cartoning machine suitable for packing all kinds of product into carton box. Also can pack light, lamps, bulb. Can connect to other machines to be whole line Specification Model: JET-C3 Technical specifications

Speed:30-80box/min
Box Thickness range: 250-350g/m2 (according to its size to confirm)
Box SizeRange: Length:55-200mm, Width:14-90mm, Height:13-65mm (can do custom designed)

Compressed air

Working pressure:≧0.6mpa
Air consumption: 20m3/h
Power supply:380V50Hz
Motor Power:1.5KW
Machine dimension (L×w×H):3100×1100×1900mm
Machine weight: Appro 1500KGS

Standard features

Touch Screen HMI controls
PLC programme
Japan Omron electric parts (inverter, PLC,touchscreen)
Germany sick photocell
Vacuum assisted pre-break
varioussize are avaliable in machine within machine size range
withoutproduct, carton will be not sucked down
Auto display trouble, alarm and count finished product
Overload protection

Optional features

autoleaflet (1-4 folds)
autoconveyor (connect our machine with your present machine to be whole automatic line)
autoadd base cover and up cover
hotmelt glue (can be american nordson, dynatec, spain meler, switzerland robatech)
other brand like simens (inverter, PLC, touch screen)
Print batch number or date on carton box
