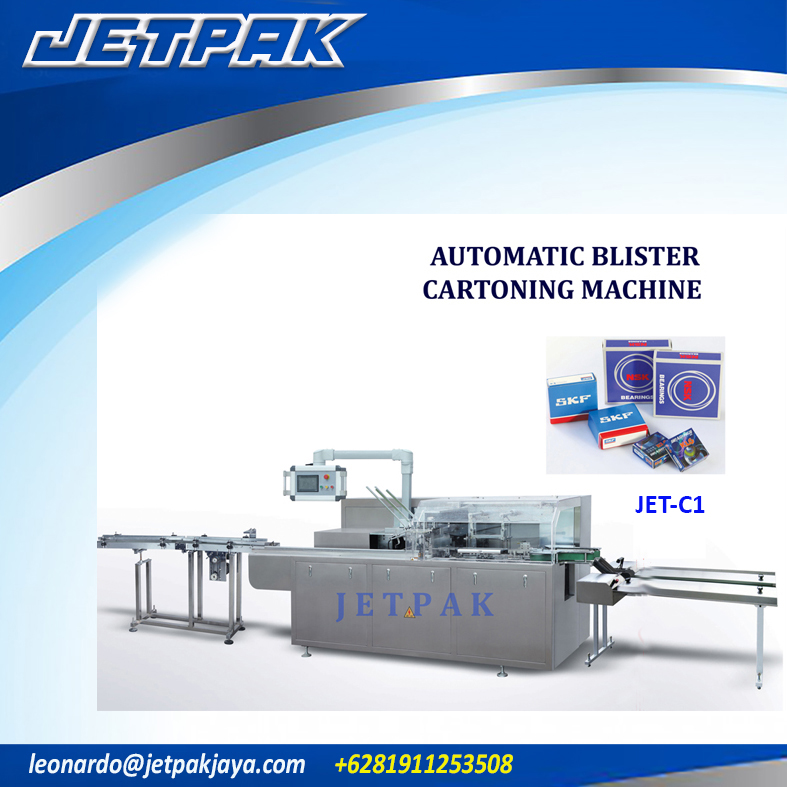

Automatic Blister Cartoning Machine

JET-100B automatic small box cartoning machine suitable for packing all kinds of product into carton box.

Description

JET-C1 Automatic Blister Cartoning Machine suitable for packing all kinds of product into carton box. Can connect to other machines to be automatic whole line  Specification   Model: JET-C1  Technical specifications
  • Speed:30-80box/min
  • Box Thickness range: 250-350g/m2 (according to its size to confirm)
  • Box Size Range: Length:55-200mm,Width:14-90mm, Height:13-65mm(can do custom designed)
  Compressed air
  • Working pressure:≧0.6mpa
  • Air consumption: 20m3/h
  • Power supply:380V50Hz
  • Motor Power:1.5KW
  • Machine dimension (L×w×H):3800×1100×1900mm
  • Machine weight: Appro 1500KGS
  Standard features
  • Touch Screen HMI controls
  • PLC programme
  • Japan Omron electric parts (inverter, PLC,touchscreen)
  • Germany sick photocell
  • Vacuum assisted pre-break
  • varioussize are avaliable in machine within machine size range
  • withoutproduct, carton will be not sucked down
  • Auto display trouble, alarm and count finished product
  • Overload protection
Optional features
  • autoconveyor (connect our machine with your present machine to be whole automatic line)
  • hotmelt glue (can be american nordson, dynatec, spain meler, switzerland robatech)
  • otherbrand like simens (inverter, PLC, touch screen)
  • Print batch number or date on carton box
