Description
Function:
Automatically measuring volume, making bags, filling, sealing, cutting, printing the lot number and cutting easy tearing notches, finished product conveying.

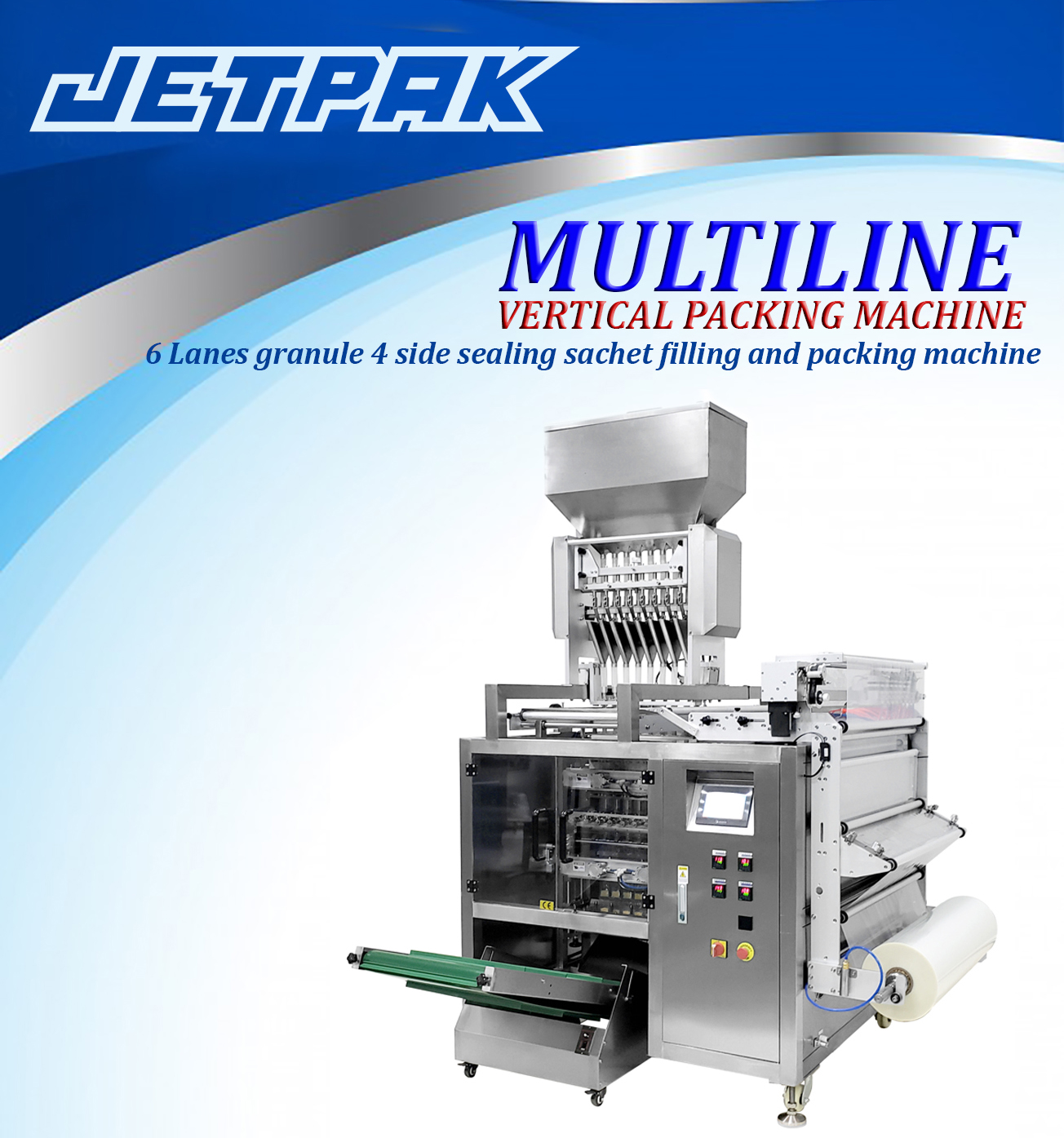

Multiline Vertical Packing Machine
1.Function:
Automatically measuring volume, making bags, filling, sealing, cutting, printing the lot number and cutting easy tearing notches,finished product conveying.
2.Standard Features:
(1).Famous brand PLC control system,large touch screen,convenient to operate;
(2).Film drawing down system by famous bland servo motor.
(3).Advanced design,high precision and fast speed;
(4).Various alarm system to reduce waste;
(5).Photoelectric tracking system for precise bag length and position of film
3.Specification :
|
Model |
JET-K6 |
|
Lane number |
6 lanes |
|
Packed item |
Seasoning powder |
|
Capacity |
About 25-30 cuts/min;depend on the film and product |
|
Measuring method |
Volumetric cup |
|
Bags size |
Length: 45–-120 mm Width:85 mm |
|
Film width |
Max.1200mm |
|
Film thickness |
0.07–0.10mm |
|
Sealing type |
4 side sealing |
|
Cutting type |
Straight cutting with easy tear notch with linked |
|
Film material |
Laminated film,like PET/PE,OPP/PE,NY/PE,PET/AL/PE.etc. |
|
Air consumption |
0.8Mpa 0.8m3/min |
|
Power source |
1N+PE/50HZ/AC220V(380V)/5.5KW |
|
Dimension |
L2230x W2218x H2500mm |
