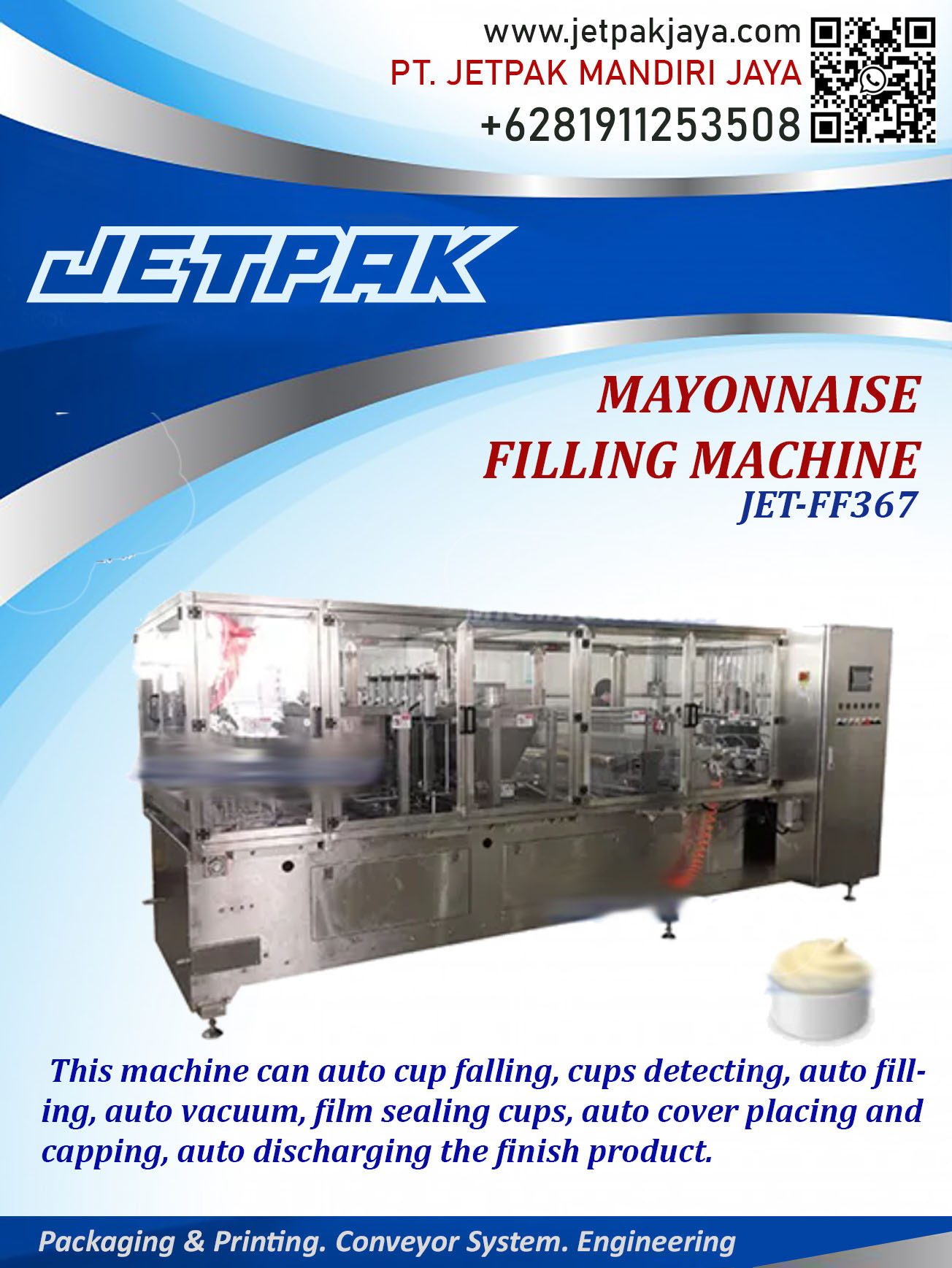

MAYONAISE FILLING MACHINE

Description

the macine mainly feature:

Driven system：Servo motor with gearbox for the cup molds stepping running, it can moves the filled cup very fast but avoid material splashing because the servo motor can start and stop with uniform velocity, and also high positioning accuracy.

Empty cup loading function: it adopts spiral separating and pressing technology which can avoid the cup damaging and deforming, it has vacuum sucker which can guide the cup to onto the mold accuracy.

Empty cup detecting function: it adopts photoelectric sensor or optical fiber sensor to detect the mold have or haven’t empty cup, it can avoid the mistake filling and sealing if the mold without the cup, reduce the product waste and machine cleaning.

Quantitative piston filling function: piston filling and cup lifting function, no splash and leakage, the filling system also has CIP clean function.

Granules filling device: measuring cup filling is suitable for filling little granules on the hummus.

Vacuum function: the system is composed of vacuum pump, vacuum gas storage tank, vacuum valve, charging valve, vacuum meter, etc. The cup will be vacuumed to extend the shelf life of the product.

Film Sealing cutting function: The system consists of automatic film drawer, printing film location, waste film collection and thermostat sealing system, sealing system can runs fast and locates at the printed film accurately. Thermostat sealing cutting system uses Omron PID temperature controller and sensor for high-quality heat sealing.

Capping function: it is composed of lower locating mould, lid storage frame and lid releasing manipulator. The position of the cover is accurate, the success rate is high, to ensure that the cover is closely connected with the plastic cup.

Discharge system: it can output the sealed trays and sends it to the outside liner.

Automation control system: it is made up by PLC, Touch screen, servo system, sensor, magnetic valve, relays etc.

Pneumatic system: it is made up of valve, air filter, meter, pressing sensor, magnetic valve, air cylinders, silencer etc.

Dust guards: it is optional function, it is made up by PC plates and stainless steel, has safety switches which protect the operator.
