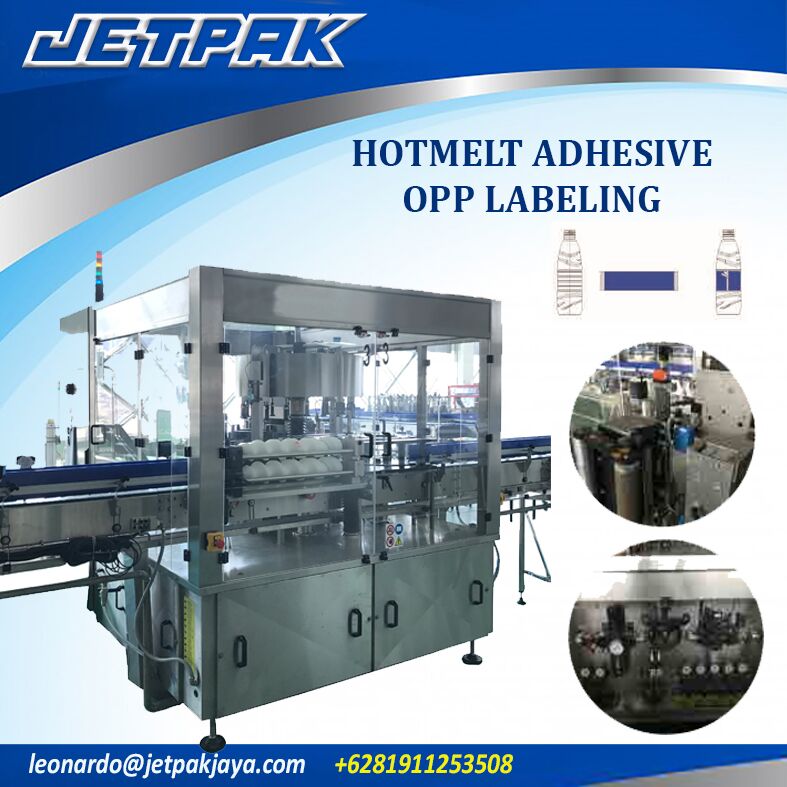

Hotmelt Adhesive Opp Labeling


Hotmelt Adhesive Labeling JET-400 Technical Parameter
  1. Capacity:24000BPH.(500ML).
  2. Bottle Material:PET,Glass,Metal
  3. Label Roll Inner Diameter:6 inches (152 mm).
  4. Bottle Diameter:φ30-160 mm
  5. Bottle Height:100-500 mm.
  6. Label Height:10-200 mm.
  7. Power:AC 3φ, 380V/50HZ.
  8. Air Consumption:3-6 kg/cm²
  9. Power Consumption:16 KW.
  1. Auto cutting and Sticking circle or half circle of bottle. Auto melting and attaching glue on top and rear of the label , glue auto recycling .
  2. Variable speed control system, synchronous automatic detection system, automatic adjust production speed, Always make the labeling machine at best production speed
  3. Star Wheel separation and feeding ,correlation design transmission mode high-speed labeling, stable precision.
  4. Servo motor synchronous tracking, with special designed vacuum drum adsorption, labeling precise and stable.
  5. Abnormal situation, this machine has safety device, automatic stop immediately.
  6. Following conditions the machine will automatically stop and alarm:
Label is not labeled on bottles
  • Label sticker failure
  • Label is about to run out
  • Abnormal bottle feeding
  • Abnormal bottle out
  • Abnormal bottle jam
7.  The whole machine centralized lubrication system, easy to clean, lubrication and maintenance. 8.Techmach electronic automatic rectify guide system,  digital electronic eye for ultrasound method.Non-contact electric eye, automatically adjust the label location. (optional).
  1. Label top and end difference within 2mm ( without Techmach), 1mm (with techmach)
