Description

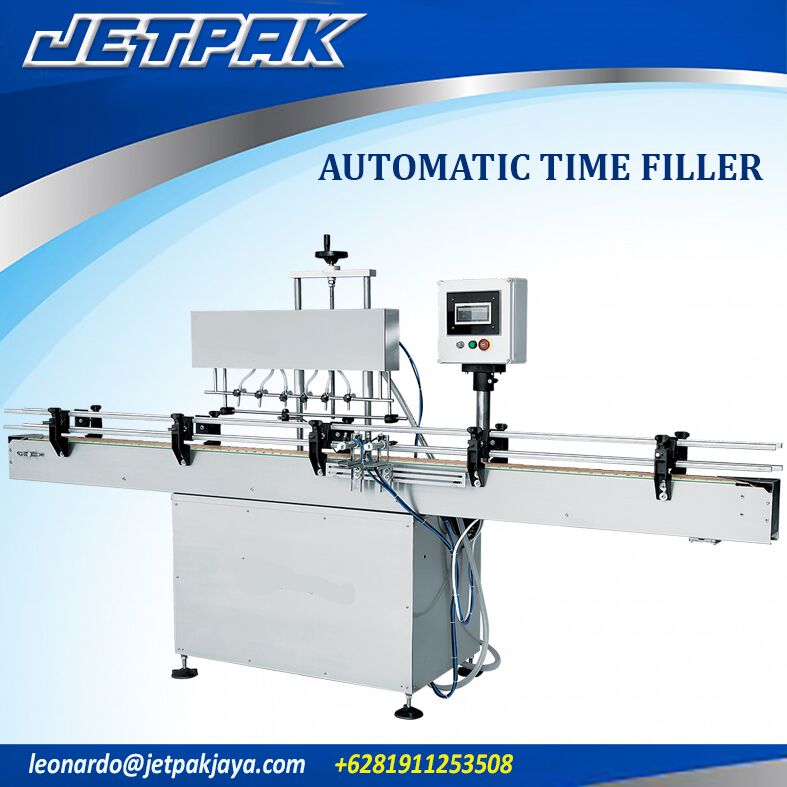

Automatic Time Flow Filling Machine
Our ATF series are designed to dispense water like to medium thick products, such as liquid medicines, disinfectants, lotions, beverages, oils, etc. The machines feature compact configuration, nice appearance, easy adjustment, high filling accuracy and wide applicability, etc., are widely used in the pharmaceutical, daily chemicals, food and other industries.
This series is based on the TIMED FLOW VOLUMETRIC FILLING PRINCIPLE. We choose excellent components of known brand for the ATF’s electric and pneumatic systems to ensure the machine’s good quality. The standard machines of this series are equipped with 6 to 10 filling nozzles, we can also reduce or add the nozzles according to your production output.
Features Including:
- All the components that come in contact with product are made of food grade stainless steel or other anticorrosive materials for your special requirement.
- ’No drip filling nozzles’ can avoid stringing and dripping effectively.
- Product supplement system adds product for the machine automatically and keeps the liquid level within a stable range, which helps to ensure the high filling accuracy of the machines.
- Easy to set parameters, and quick to adjust filling volumes.
Technical Specifications:
Voltage |
220V交流 220V AC |
Power |
1000 瓦 1000 W |
Air Pressure |
5-6 kg/cm2 |
Air Consumption |
300 L/min |
Accuracy |
±1% |
Filling Volume |
50~500ml |
Filling Rate |
20~30瓶/分钟(以500ml/瓶水剂, 配置6头为例)
20~30bpm(for 500ml/bottle, water thick products, with 6 filling nozzles) |
Dimensions |
L1350x W587x H1563mm
参考尺寸:6头,不含输送带
Reference Size:6 filling nozzles, without conveyor |
