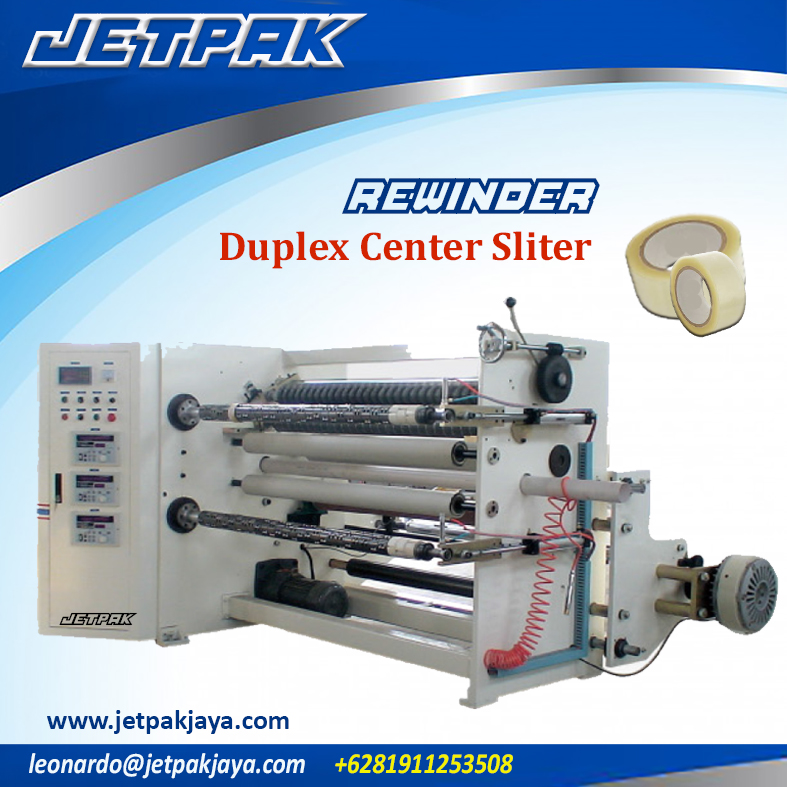

Duplex Center Slittr Rewinder

Duplex Center Slittr Rewinder
Application : 2 shafft center type winding, suitable for slitting rewinder various films, paper, (optionall adhesive tape)
Specification :
Machine Width : 1.0M/ 1.3M/ 1.6M Max. Unwind O.D : ø800 mm
Rewind Core I.D : ø3 Max. Rewinder O.D : ø350mm
Min. Slitting Width : 50mm Machine Speed : 200M /Min

Optional parts :
1. Unwind pick-up lift : for loading jumbo roll on the machine quickly and time saving
2. Shafless unwind base : separated type with hydraulic core chuck can be equipped for efficient and quick performance on jumbo roll change
3. Connected splice table : splicing materials smoothly in order to decrease production loss
