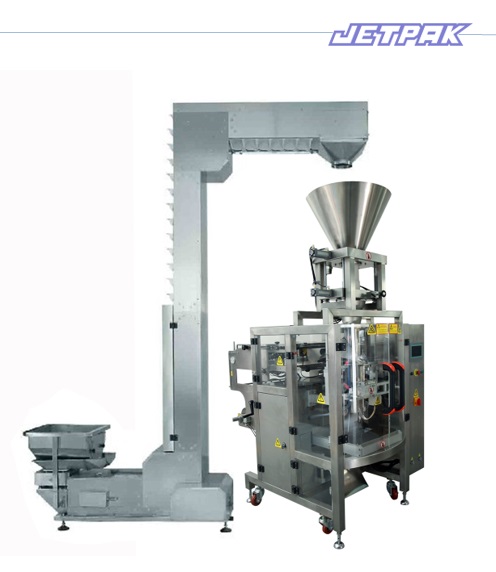

Automatic basic packing machine : Finish the works of making bags, filling product, sealing, cutting.
Single bucket volume cups measuring equipment’s : Finish the work of measuring your wanted packing volume.
Automatic Z shape material elevator : Finish the work of transporting Raw Material to the upper of machine for measuring and packing.
Finished products conveyor : Finish the work of conveying the packed product out of the machine.
Date printer : Finish the work of printing the production date, expiration date, batch numbers.
TECHNICAL PARAMETER
Item
Automatic Granule Packing machine for Rice, sugar, beans, etc
Model
JET-620K
Filling
Volume cups
Bag style
back sealed bags
Volume/bag
1kg-5kg, packing volume can be adjusted.
Film width
620mm max film width
Bag size
L 100-500mm, W 80-300mm
Packing speed
15-50 bags/min, depends on your packing variety and packing volume, packing film, etc.
For packing 1kg sugar, the packing speed is about 30-40 bags/min
For packing 2kg sugar, the packing speed is about 20-25 bags/min
For packing 5kg sugar, the packing speed is about 5-10 bags/min
Above speed is for the normal pillow bag style
Control system
PLC+ touch screen
voltage
AC, 380V-415V, 50Hz/60Hz, 3P
Weight
G.W.1500kg
Power
4.5KW
Pneumatic
0.8Mpa, 0.5CBM/min
supplies
all kinds of grain or granule, like rice, coffee, sugar, salt, beans, washing powder, etc.
Main functions
Automatically measure, make bags, fill, seal, cut, printing codes, etc.
PROCESSES FLOWS
Power on (set constant temperature) → Set Parameter (the bag size, package weight) →feeding→ Material Convey → Measuring → Bag Forming → Filling →Sealing → Cutting → printing production date→ Finished Products Convey
FEATURES
This machine can finish feeding, measuring, pulling, filling, forming, cutting
Chinese-English touch screen display, easy operation and maintenance.
Mitsubishi PLC control system insure steady working conditions, and available to adjust any parameter without stopping the machine.
Adopt Servo motor to pull film, more accurate.
Independent temperature control system, precision±1 degree, to ensure a good fit of various kinds of complex film, PE film.
Automatic alarm protects system, to save the waste into minimum limited.
Various kinds of packing style, back sealed, gusset insert, punch and etc…
With lower noise to keep quiet working environment.
